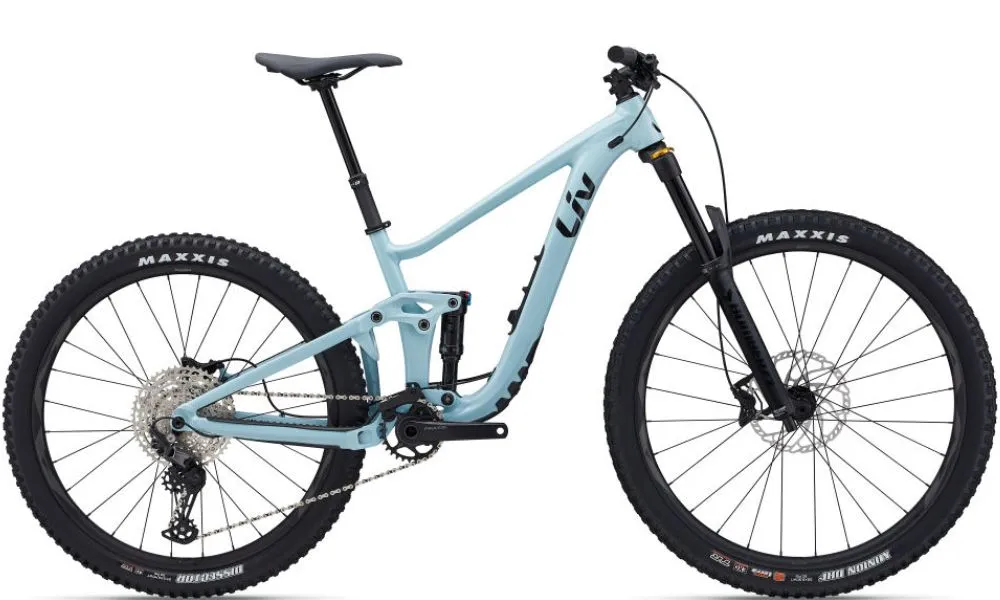

Liv 2024 Intrigue LT 1
WHETHER YOU'RE LOOKING AHEAD TO PARK DAYS, STARING DOWN A ROCKY LINE YOU’RE DETERMINED TO CONQUER, OR PREPARING FOR YOUR FIRST ENDURO RACE – THE ALL-NEW INTRIGUE LT EQUIPS YOU WITH THE VERSATILITY OF ADJUSTABLE FRAME GEOMETRY, THE DURABILITY OF ALUXX SL-GRADE ALUMINUM AND THE ULTRA-SMOOTH PERFORMANCE OF MAESTRO SUSPENSION SO YOU CAN SAY “YES!” TO IT ALL.
Performance Long Travel Trail
Lightweight ALUXX SL-grade aluminum frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centered and in control in the corners.
Adjustable Frame Geometry
Equipped with the new flip chip – Maestro 3, you can easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style.
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end.
Specifications
Liv 2024 Intrigue LT 1
Frame
Colour: Starry NightFrame: ALUXX SL-Grade Aluminium, 150mm Maestro Suspension, flip chip 3 position, integrated downtube storage, 55mm Chainline
Fork: Marzocchi Bomber Z1, 160mm, Rail damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
Shock: NA
Drivetrain
Crankset: Praxis Cadet HD M24, 30t, 55mm chainline XS:165mm, S:170mm, M:170mm, L:170mmPedals:
Chain: KMC X-12
Bottom Bracket: Praxis, press fit
Rear Derailleur: Shimano Deore, Shadow
Front Derailleur: NA
Derailleur Shifter: Shimano Deore, 1x12
Freewheel/Cassette: Shimano Deore, 10x51
Wheels
Tyres: [F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R, size M and L] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubelessWheels/Rims: Giant AM, tubeless ready sleeve-joint rim 30mm inner width XS/S: [F] 29", [R] 27.5" M/L: [F]29", [R]29"
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Braking System
Brakes: Shimano BR-MT420, hydraulic, Shimano RT-56 rotors [F]203mm, [R]180mmBrake Levers: Shimano BL-MT401
Other
Handlebar: Giant Contact TR35, 35mmStem: Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm, L:50mm
Saddle: Liv Sylvia
Seat Post: Giant Contact Switch dropper, remote
